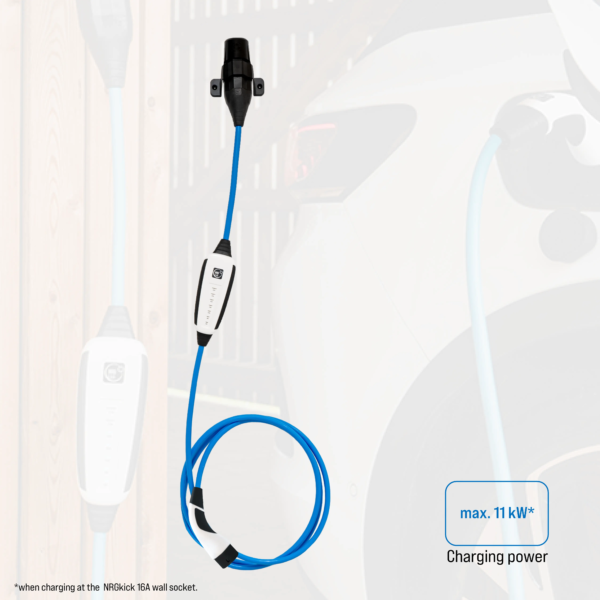

NRGkick Fix “Select”
32A, 11kW & 22kW, Type 2, WiFi + Bluetooth, optional GSM/GPS/SIM, incl. locked protective cover, NRGkick Wall Socket 16A
The NRGkick Fix product range is included in additional subsidy programmes for firmly installed charging stations in Germany (KfW), Austria and other countries and meets all the necessary requirements.
Scope of delivery and features charging unit
- NRGkick 32A charging unit
- NRGkick wall socket with locked protective cover (permanently connected to supply line by electrician)
- Type 2 plug on vehicle side
- Maximum charging current up to 32 amps – corresponds to maximum charging power of up to 22kW*.
- Optional Smart Attachments available (for later use at all standard sockets and at public charging points)
- Communication interfaces: Bluetooth, WiFi, Cloud, Web API
*When the charging unit is permanently connected to the NRGkick wall socket, the maximum charging power is 11kW (16A)
- Simple, fastest possible charging at all sockets and charging points
- WiFi + Bluetooth included
- Free app & cloud
- Temperature monitoring and overheating protection
- Blackout protection
- Undervoltage/overvoltage protection
- Protection from wrongly wired sockets
- Hot-unplug detection with arc protection
- Patented high-level safety connector system
- Ready for grid-supportive charging
- Automatic, assignable charging reports
- Additional features (e.g. OCPP, photovoltaic-led charging with phase transition,…) inexpensively upgradeable via NRGkick app
NRGkick is everything your electric vehicle needs to charge.
The highly innovative NRGkick charging unit is the safest charging unit on the market – and arguably the smartest. The groundbreaking, patented high-level safety connector system with temperature monitoring on each phase pin ensures that scorched sockets are ruled out.
Innovations such as autonomous load management, blackout protection, locally assignable charging reports via WiFi and the possibility of upgrading further functions via the app at any time (such as photovoltaic-led charging with phase transition in the near future) prove that with NRGkick KfW Max you are not only technically on the cutting edge, but far beyond it!
Fastest possible charging, simple and uncomplicated
With NRGkick, all electric vehicles with a Type 2 interface, whether 1-, 2- or 3-phase, can be charged at the maximum possible AC charging speed (up to 22 kW). Compared to the “emergency charging cable” for household sockets, this means that charging is up to 20 times faster and you can start your next journey fully charged in a very short time instead of waiting many hours.
With NRGkick KfW Max, you don’t have to bother with planning and high installation costs: all you need is the already included NRGkick wall socket, which can be installed in no time at all by an electrician on a 16A fused supply line. The residual current protection mechanism for AC and DC residual currents, which would otherwise have to be installed separately, is also already included in the charging unit!
The safest charging unit on the market, on top extremely robust
NRGkick offers a wide range of safety features, some of which have never been seen before, such as the patented high-level safety connector system with hot-unplug detection and arc protection, as well as temperature monitoring for each Smart Attachment on each individual phase pin! For domestic plug attachments, we record the temperature on both pins…. Scorched sockets are a thing of the past once and for all!
But these are only two of an incredible number of safety functions, NRGkick offers with blackout protection and undervoltage protection, overvoltage protection, phase shift detection, wrong connection test, switch contact diagnosis, protective conductor test by means of loop impedance measurement, included residual current protection (AC, DC + 6 mA), mains frequency diagnosis, automatic self-test and many, many more other functions!
Of course, safety also includes the fact that NRGkick is extremely resistant to external influences and tampering by third parties. Therefore, the loading unit has the highest load values and a variety of functions to ensure this, such as:
Anti-theft and tampering protection, drive-over protection, temperature resistance -40 to +70 °C (operating temperature), water- and dustproof (IP67, IP69k), shock and impact resistance (IK10), soft components on charging unit and Connector Unit for optimal haptics and scratch protection, highest number of mating cycles due to silver coating of all plug attachment contact parts,…
Patented high-level safety connector system
The NRGkick’s patented high-level safety connector system incorporates unique features that are far ahead of the market. It consists of the Connector Unit and Smart Attachments, which are available for all standard sockets as well as for public charging stations. So NRGkick is indeed everything an electric vehicle driver ever needs to charge his vehicle anywhere there is electricity!
However, the system scores with many more features. For example, it enables temperature measurement – and this for each individual Smart Attachment and here even at each individual phase pin. In the case of domestic Smart Attachments, the temperature is recorded on both pins. Scorched sockets are therefore impossible with NRGkick!
Another unique feature is the fully automatic hot-unplug detection of the system. This ensures that when disconnecting the charging unit from the power supply, no dangerous arcs can occur for you and your socket.
An additional LED display on the Connector Unit, haptic optimisation through the use of soft components, the avoidance of any “cable tangle” and many other functions make the safety plug system an outstanding innovation!
Thermo-protect temperature management
If a socket becomes too hot, this is detected thanks to the temperature monitoring of the Smart Attachments at each phase pin. Thus NRGkick is able to regulate the charging current completely independently by means of the included temperature management and to guarantee a safe operation without danger. For household sockets, both pins are temperature monitored, so there is always absolute safety for charging unit AND socket – no matter at which connection!
Autonomous load management and blackout protection
An absolutely unique feature: NRGkick brings autonomous load management and protects against blackouts! This means: If NRGkick detects that the voltage drops too much due to a high load in the grid, the charging current is automatically regulated so that the power grid can “recover” or stabilise.
Unlike other load management systems, no complex configuration is required here – the NRGkick’s autonomous load management functions fully automatically and without any user intervention. In addition to this unique function, other load management options will also be available for NRGkick in the future.
Bluetooth and WiFi, optionally GSM/GPS/SIM
Thanks to the large number of interfaces, it is ensured that NRGkick can always be accessed anywhere. Every NRGkick has a Bluetooth and WiFi interface (optional GSM/GPS/SIM) as well as access to the NRGkick Cloud and the Web API. So via the free NRGkick app for iOS and Android you can access the charging unit at any time and use all advanced features.
The NRGkick variant with GSM/GPS/SIM ensures that you really have access to your NRGkick from anywhere. Not only EDGE and GPRS are used, but also 4G M1 and 4G NB-IoT – these connection Types have been specially developed for “Internet of Things” applications and are designed to provide access to your NRGkick even in difficult communication situations (e.g. underground garages)! For example, when charging costs are only reimbursed to third parties if they have taken place at certain locations, you can be sure that the charges are securely recorded and transmitted thanks to GSM/GPS/SIM.
Transportable and compact
Goodbye, bulky charging brick and unsightly giant metal cylinder! NRGkick is one of the smallest intelligent 22 kW charging units ever. Its small dimensions and literally “handy size” make it convenient and easy to handle.
In contrast to permanently installed wallboxes, NRGkick can be easily taken anywhere if required. Thanks to the extremely low weight of around four kilograms for the 5m variant and the particularly flexible, high-quality charging cable, NRGkick is especially pleasant to handle and will accompany you on your travels in no time at all.
The free NRGkick app gives you access to a wide range of intelligent functions:
Detailed charging statistics, display of charging power costs, automatic sending of charging reports (PDF & CSV), overview of charged energy amount, definable charging start time, scheduled charging with charging plans, energy counter, infinitely adjustable charging current in 0,1 A steps, charge start/charge stop at any time, adjustable charging energy amount,…
Charging networks – Ready for charging (OCPP)
NRGkick has the optional ability to communicate via the OCPP standard and thus join charging networks. This provides the ability to transmit the amount of energy charged and other data via OCPP to an operator of such a charging network.
Ready for grid-friendly control
The grid-serving control of charging units is becoming increasingly important – NRGkick is already prepared for this. Thanks to the versatile communication options (Bluetooth, WiFi, GSM/SIM, Cloud) and standards (OCPP), NRGkick is absolutely future-proof.
Locally assignable charging reports via WiFi & charge reports with GPS coordinates (for GSM/GPS/SIM variant)
In the NRGkick app, it is also possible to specify the location of the WiFi networks that have been set up – for example, “At home” or “At work”. This information is later also visible in the charging reports, making it possible to make accurate statements about the amount of energy charged at a specific location!
NRGkick comes with connectivity via Bluetooth and WiFi as standard. However, it is also available with additional communication options – GSM/GPS and integrated SIM! This, in effect, allows the charging unit to be accessed from anywhere without you having to be nearby and regardless of any WiFi networks that may not be available.
Through GPS, NRGkick also has the ability to display charges in charge reports with the associated geolocation data! This allows you to see exactly where and how much was charged – which can be very helpful if you only want to track charges from certain locations (e.g. for billing purposes).
Upgradeable & Updateable
NRGkick adapts to your needs – so features can be upgraded at any time after purchase! You already have an electric vehicle, but are planning your photovoltaic system for the next few years? No problem with NRGkick! Get features like photovoltaic-led charging with phase transition for your NRGkick anytime later – without additional hardware, without buying a new charging unit! In addition to photovoltaic-led charging with phase transition, there will be many other features that you can add to NRGkick at any time later if you wish: Communication via OCPP and soon advanced load management, fleet management and much more!
NRGkick is not only upgradeable – but also absolutely future-proof via Over-the-Air (OTA) updates, as new functions and improvements are automatically downloaded from your NRGkick and are immediately available.
NRGkick was the first mobile charging unit ever to be validated and certified by VDE and ÖVE. The VDE (Verband der Elektrotechnik Elektronik Informationstechnik e. V.) is the most respected body for this ever. This testifies to the compliance with the relevant norms and standards and is proof of the superior product and manufacturing quality of NRGkick. At NRGkick, not only the products themselves, but also the manufacturing facility are certified and monitored by VDE and ÖVE!
For this reason, NRGkick proudly carries the VDE and ÖVE labels on the product. NRGkick is CE, UKCA and RCM conform.
Scope of delivery and features of Photovoltaic-led charging
- Activates permanent licence to use the “”Photovoltaic-led charging”” function of an NRGkick charging unit.
- Apart from the NRGkick charging unit, no additional hardware is required.
- Configuration of the function via free NRGkick App (available for iOS and Android)
- Intelligent charging strategies (surplus charging, 100 % solar charging,…) selectable
- Allows automatic phase switching (NRGkick charges 1/2/3-phase depending on available power)
- Maximally optimised PV charging thanks to stepless charging current adjustment in 0.1 ampere steps and numerous options for adapting to own conditions
- Enables communication of the NRGkick charging unit with inverters, batteries, smart meters and smart loads
- Many brands already natively integrated (SMA, Fronius, SolarEdge, Kostal, MyPV…), complete overview at https://www.nrgkick.com/en/pv-charging/
- Allows additional integration of any non-natively integrated brands via Custom API
No installation, upgradeable at any time
NRGkick is the perfect charging solution to charge your electric vehicle with electricity from your photovoltaic system! Apart from the NRGkick charging unit itself, no additional hardware with tedious and expensive installation is required.
If you already own the NRGkick charging unit, the function can be upgraded at any time.
Large number of natively integrated brands – integration of all other brands possible thanks to Custom API
Inverters, battery storage, smart meters and smart loads from the brands SMA, Fronius, SolarEdge, Kostal and MyPV are natively integrated – more will be added on an ongoing basis. In addition, NRGkick also offers the possibility of adding devices of any other brand yourself via a custom JSON API!
Easy setup in a few minutes
Thanks to the free NRGkick app for iOS and Android, setting up PV-led charging is very easy. The configuration of the function is done directly in the app and takes only a few minutes.
Perfect charging strategies for optimal use of your solar power!
Choose between surplus charging or charging with 100% sun and configure your selected strategy individually. For example, if there is too little PV output, you can charge with grid support or pause. Home batteries, smart loads and other consumers can be taken into account and prioritised.
Accurate 0.1 amp control prevents unwanted grid draw and feed-in
Many PV controllers and charging solutions are too imprecise, as they can only set the charging current in 1-ampere steps – this leads to unwanted mains draw or feed-in. NRGkick solves this problem: it is able to adjust the charging current in 0.1 ampere steps and thus ensures the best possible utilisation of the generated PV power.
Automatic phase switching & manual selection of the number of phases
With a low PV yield, one is faced with a problem: With a three-phase power supply and the minimum charging current of e-cars of six amps, at least 4.1 kW of available PV power is required for surplus charging.
The solution is provided by the NRGkick’s automatic phase switching, which enables 1-, 2- and 3-phase charging. If, for example, there is too little PV power available for 3-phase charging, it simply continues charging 2-phase or 1-phase, fully automatically! In addition, you can even manually define in the app how many phases NRGkick should charge with.
