Description

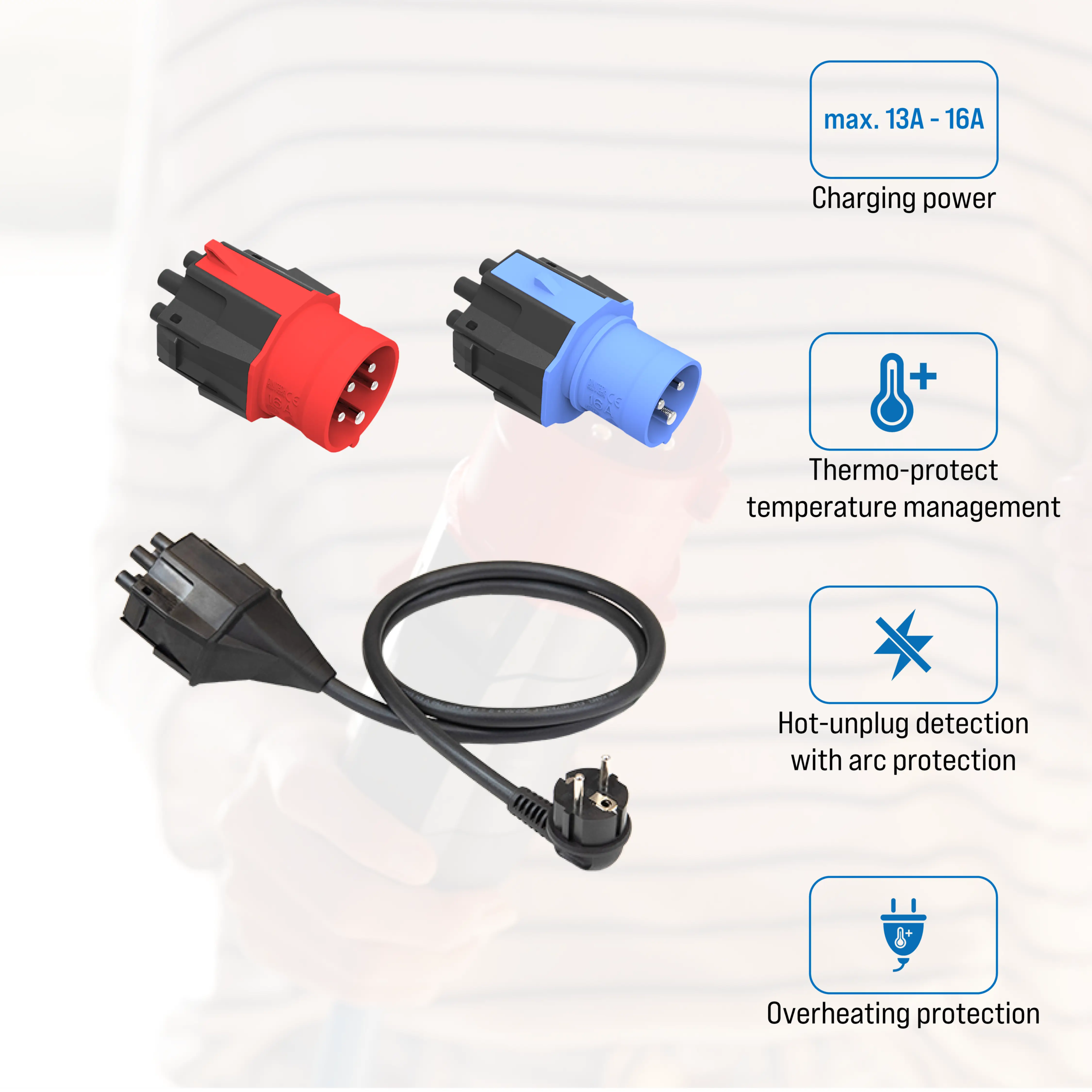

Smart Attachment Set 16A Standard (EU)
intelligent Smart Attachment for NRGkick for connection with domestic socket 16A 5Pol, 16A 3Pol, E+F “Schuko” 13A (EU), with temperature monitoring, unplug detection
Scope of delivery and features:
- Smart Attachment 16A 5Pol
- Smart Attachment 16A 3Pol
- Smart Attachment E+F “Schuko” 13A (EU)
Temperature monitoring & socket overheating protection
All NRGkick smart attachments have temperature monitoring – on each individual phase pin. The smart attachment for Schuko sockets has dual temperature monitoring on both pins. This means that your NRGkick knows exactly whether too much heat is being generated due to an incorrectly installed socket and avoids dangerous situations before they arise. If your socket becomes too hot, NRGkick regulates the charging current completely independently.
Arc protection through automatic hot-unplug detection
If a charging unit is disconnected from the power supply during charging, dangerous arcing occurs which damages the contacts. Thanks to the way the NRGkick smart attachments and the patented safety plug system work, arcing is avoided if the smart attachment is disconnected from the plug unit during charging – this is the only charging unit on the market where the current flow is interrupted even before the contacts leave each other!
Protection from wrongly wired sockets
NRGkick detects whether a socket has been incorrectly connected or installed – for example, if a second phase has been connected to a three-phase socket instead of the neutral conductor. This enables it to notify the user by means of an LED signal on the charging unit and the plug unit that there is a problem with a socket and prevents charging.
Additional LED display on connector unit
NNRGkick smart attachments are connected to the plug unit of the NRGkick – where there is an additional LED display that informs you about the status of your charging unit at all times.
Optimum haptics
NRGkick smart attachments engage noticeably and securely – accidental removal is impossible. At the same time, the non-slip, soft-component surface of the plug system ensures that you can remove and replace the smart attachments quickly and easily if necessary.
Automatic Smart Attachment recognition for your safety
The smart attachments are recognized and identified fully automatically by NRGkick. This ensures that the charging current does not exceed the maximum value for which the smart attachment is approved. Of course, national regulations are also observed here, where the charging current must not exceed a certain value when charging with a Schuko attachment, for example.
